High Purity Gas Generation Equipment PSA Oxygen Generator Medical And Industry Use Oxygen Plant

Short Description:

PSA oxygen generator is an automated equipment that separates oxygen by adsorbing and releasing nitrogen from the air through the principle of pressure adsorption, desorption, and pressure reduction based on zeolite adsorbents. Suitable for hospitals, oxygen bottle flushing, etc.


Product Detail

Product Tags

Product advantage

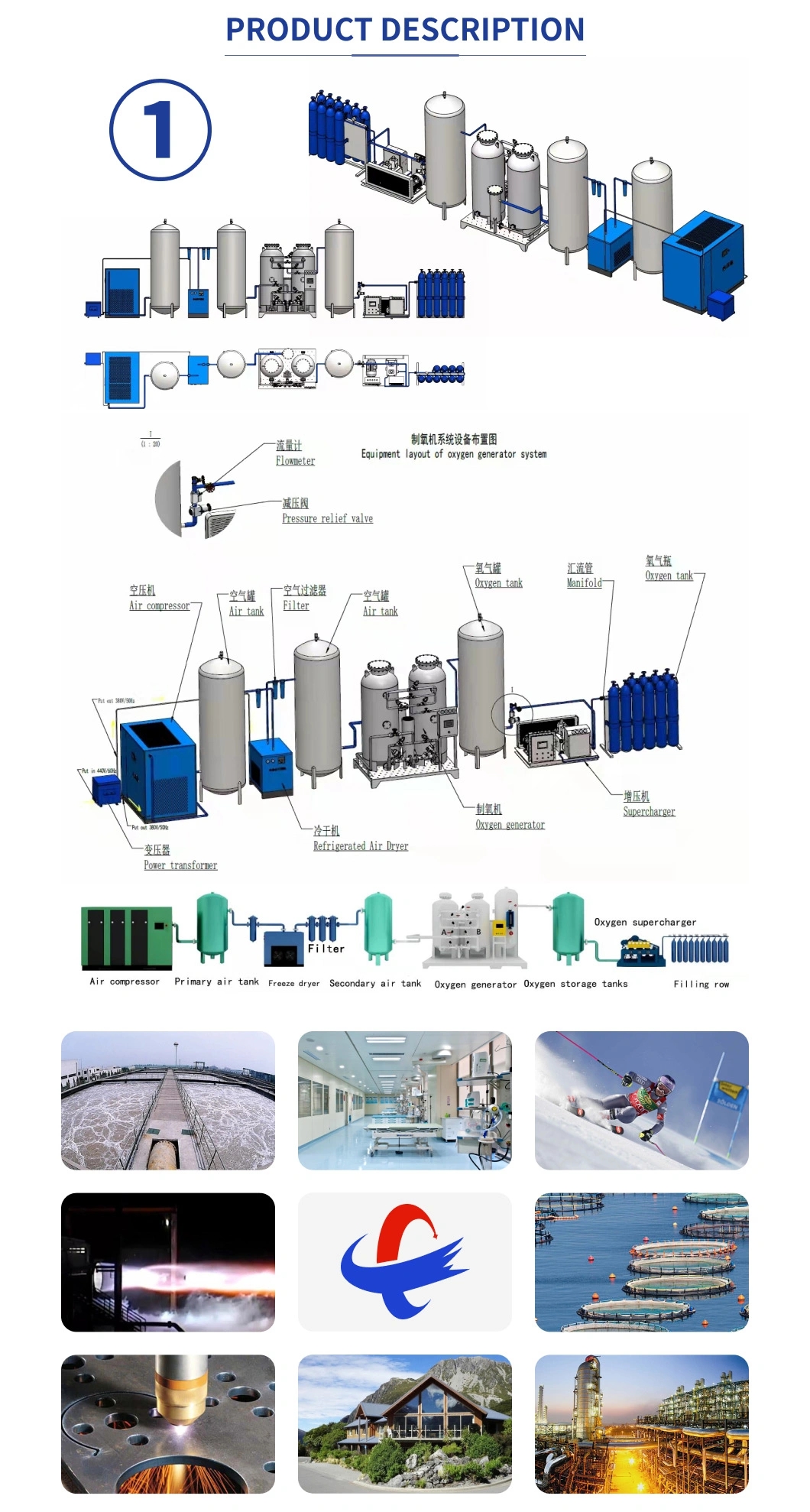

Oxygen Equipment working principle: The use of molecular sieve physical adsorption and desorption technology. The oxygen-making machine is filled with molecular sieve, which can adsorb nitrogen in the air when it is pressurized. The remaining non-absorbed oxygen is collected and purified to become high-purity oxygen. When the molecular sieve is decompressed, the adsorbed nitrogen is discharged back into the ambient air, and when the next pressure is applied, the nitrogen can be adsorbed and oxygen can be produced. The medical oxygen-producing equipment adopts the world advanced PSA (pressure swing adsorption) air separation and oxygen-producing technology, which realizes the separation of oxygen and nitrogen based on the difference of the adsorption ability of the adsorbent (zeolite molecular sieve) to the oxygen and nitrogen in the air. When the air enters the bed which contains the adsorbent, the nitrogen adsorption ability is strong, but the oxygen is not adsorbed, thus may obtain the high density oxygen at the adsorption bed outlet. Because the adsorbents have the characteristic that the amount of adsorbents changes with the pressure, the adsorption and desorption can be carried out alternately by changing the pressure.

1). Fully automatic
All systems are designed for unattended operation.
2). Low space requirement
The design and instrumentation make the factory very compact and can be assembled on prefabricated slides in the factory.
3). Quick Start
The start-up time only takes 5 minutes to obtain the required oxygen purity, so these devices can be turned on and off according to changes in oxygen demand.
4). High reliability
The oxygen purity is constant, continuous and stable operation, very reliable, the available time of the factory is always better than 93%±2.
5). Molecular sieve life
The expected life of the molecular sieve is about 15 years, that is, the entire life of the oxygen-making equipment, so there is no need for replacement costs.
6). Adjustable
By changing the flow rate, you can deliver oxygen with just the right purity.




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally depend on your needing plant,about 7-45days.

Q: Where is your port?

A:  Shanghai

Q: What is your terms of payment ?

A: T/T or L/C at sight.
